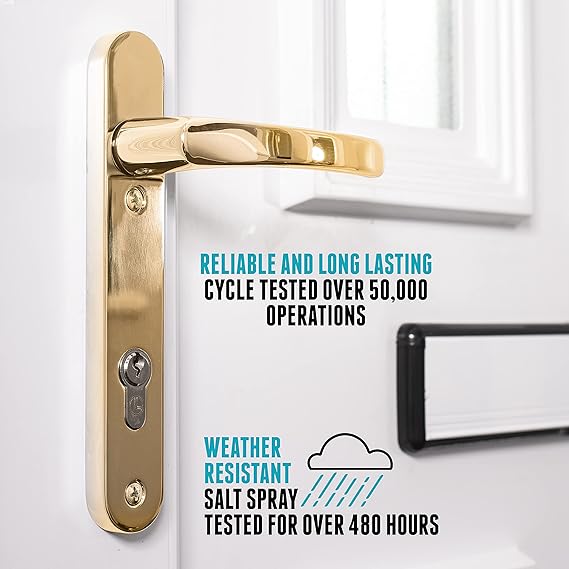

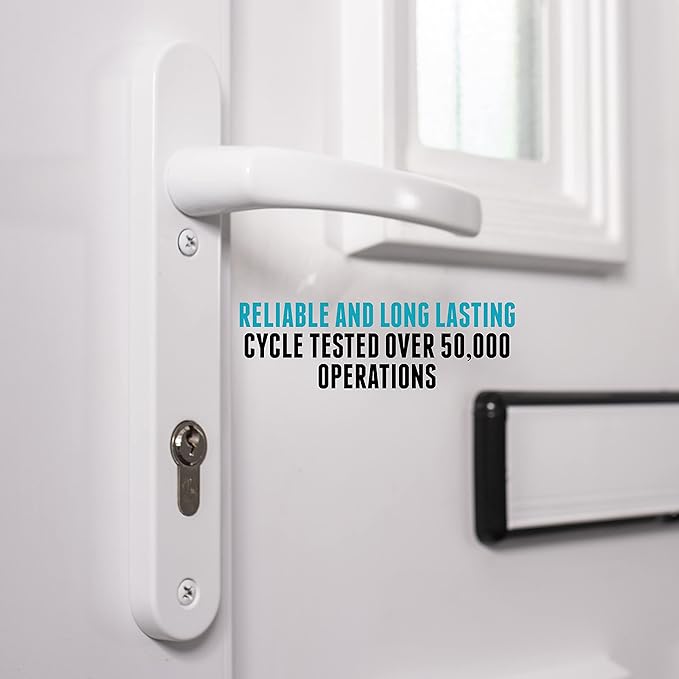

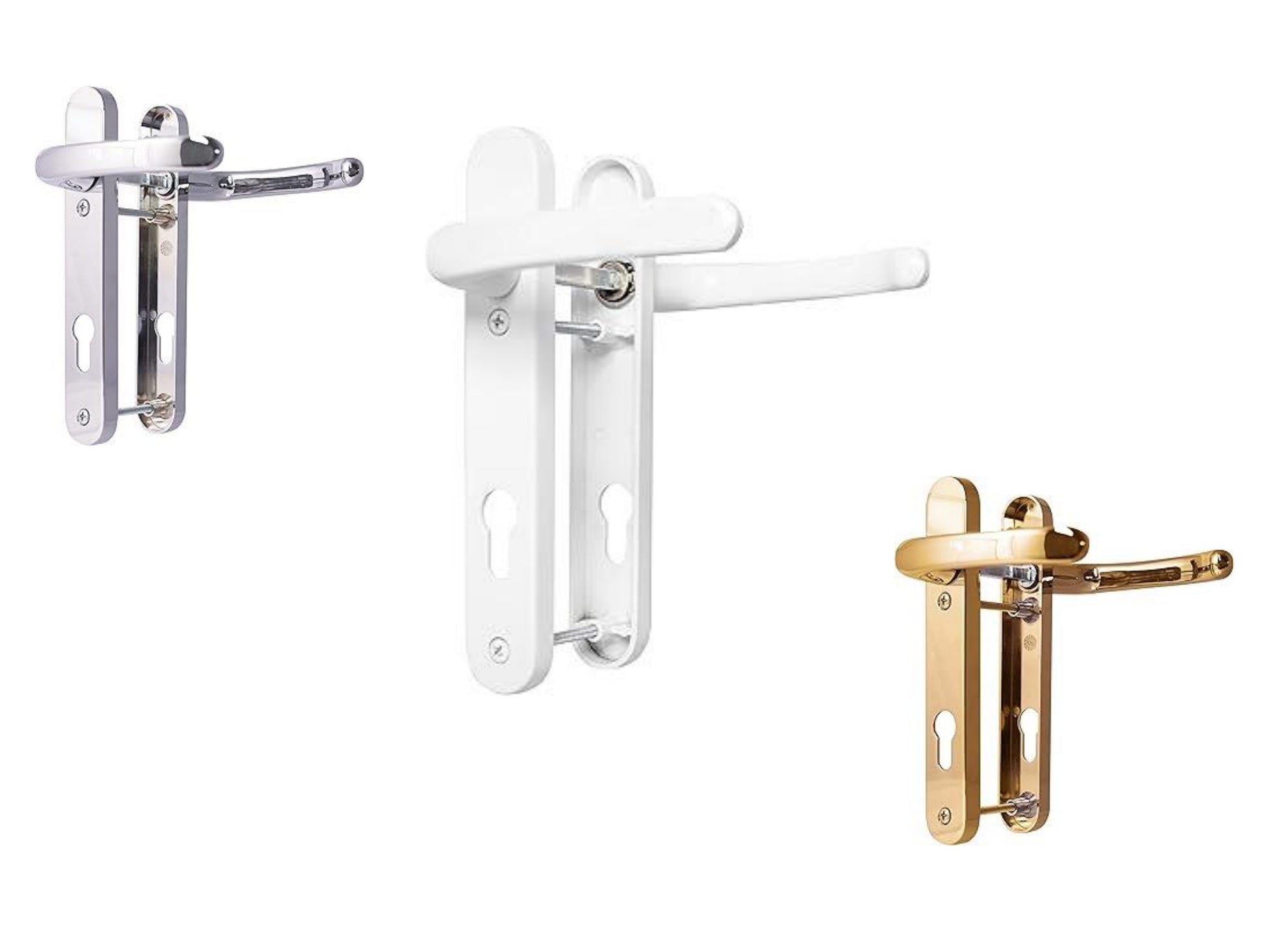

UPVC Door Handles Set - 92PZ - Backplate 212mm x 34mm White/Brass/Chrome

NFORMATION

• 92mm PZ
• Supplied complete with spindle and screws
• Fully sprung with 2 x spring cassettes
• Spindle size: 8mm
• 122mm
• Fully universal to fit both left or right hung doors

Technical

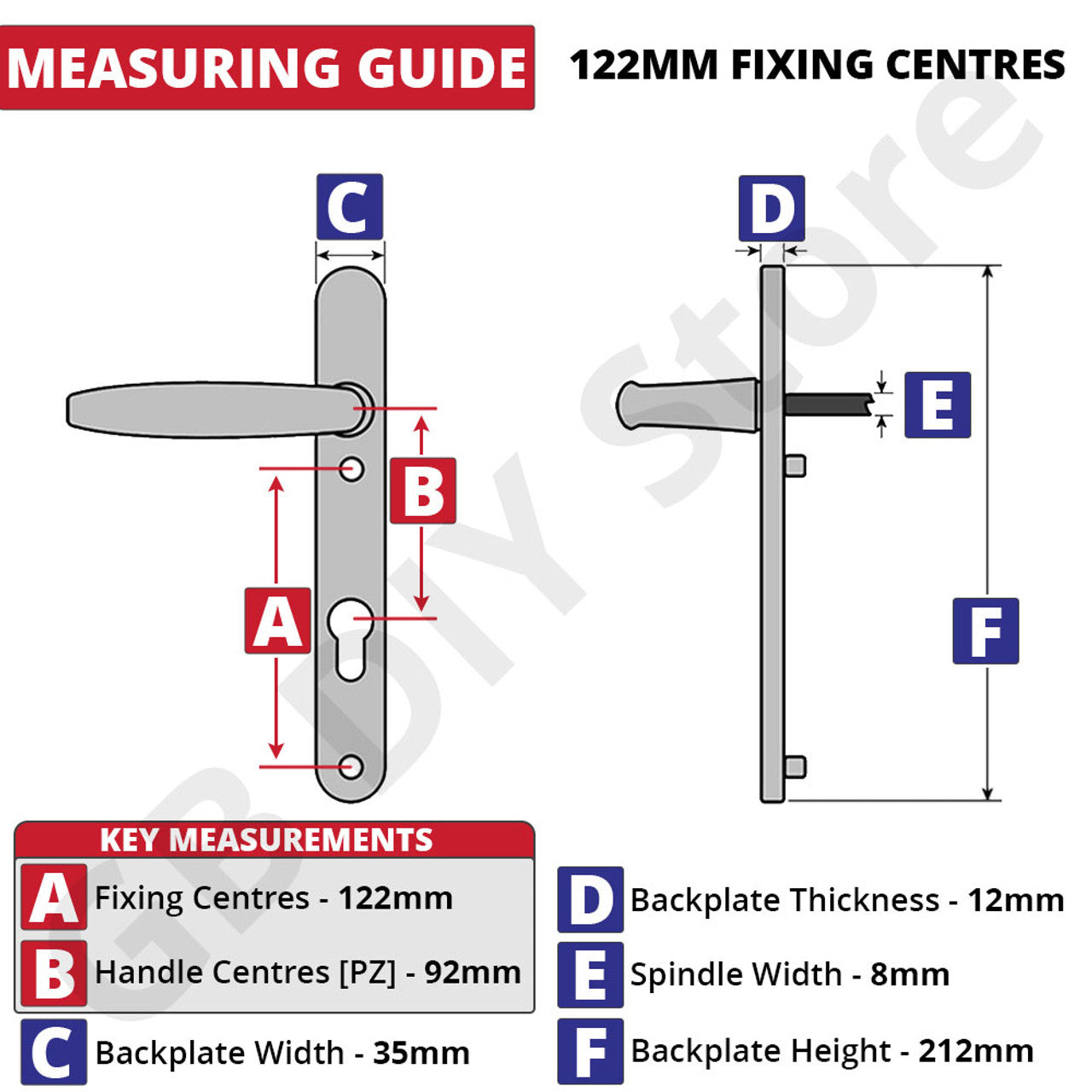

A full technical diagram is included in the image gallery.

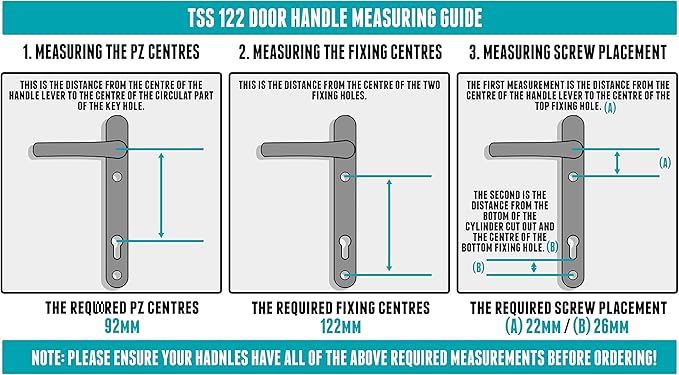

Measuring Guide

When measuring your door handle on your upvc or composite door there are two key measurements which need to be correct to ensure your replacement is a perfect fit. We have included a measuring diagram in the image gallery in addition to this guide.

Backplate Fixing Centres
The first measurement we refer to as the backplate fixing centres or fixing centres. This is measured by measuring from centre to centre of the fixing screws on the internal door handle. This is marked as measurement A on our measuring diagrams.

Handle Centres
The second measurement we refer to as the PZ or handle centres. This is measured from the centre of the square spindle hole or centre of the handle lever, to the centre of the circular part of your keyhole. This is marked as measurement B on our measuring diagrams.
If these two measurements match then the door handle will fit on your door perfectly.
If you need additional help finding the perfect upvc or composite door handle then please get in touch with our team.
